SYM12

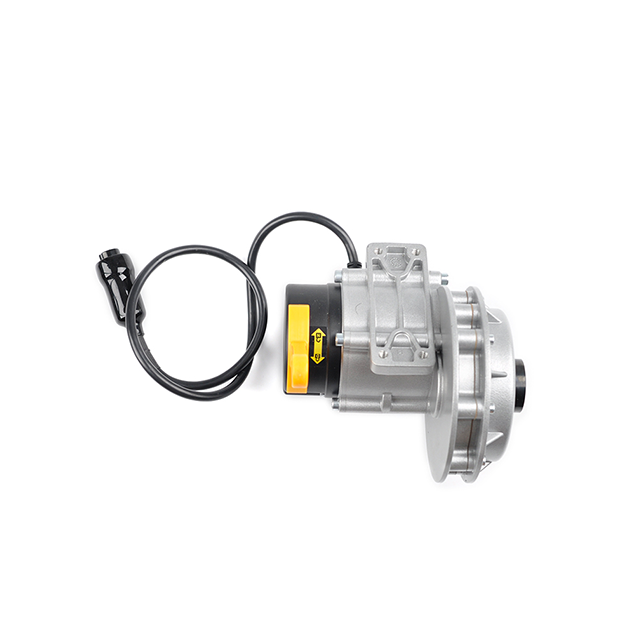

· Permanent Magnet Synchronous Reduction Motor
· Can be paired with 12 inch wheels

Estado de Disponibilidad:

  • Motor power: 220W

  • Rated voltage: DC 24V

  • Delivery current: 0.7A

  • Rated speed: 1600

  • Maximum speed: 2000

  • Gear box reduction ratio: 15.75

  • Electromagnetic brake: 24V / 3nm

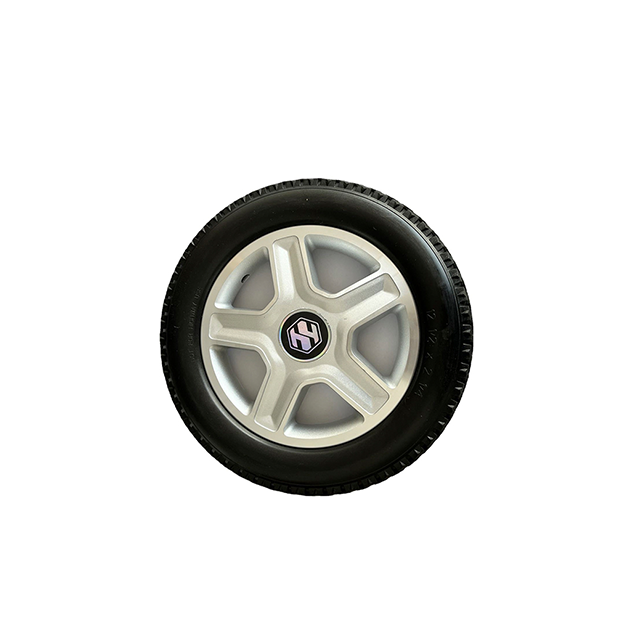

  • Can be paired with 12 inch wheels

Assembly 12-inch wheel diameter wheelchair performance parameter table


12-inch wheel

Maximum speed

8km / h

Drive braking performance

Horizontal road brake

≤1.5m


Maximum safety slope brake

≤3.6m

Pole performance

≥10 °

Gradeability

≥10 °

noise

≤52dB

Theoretical driving distance (10AH battery)

≥20km

Load capacity

≤150kg
