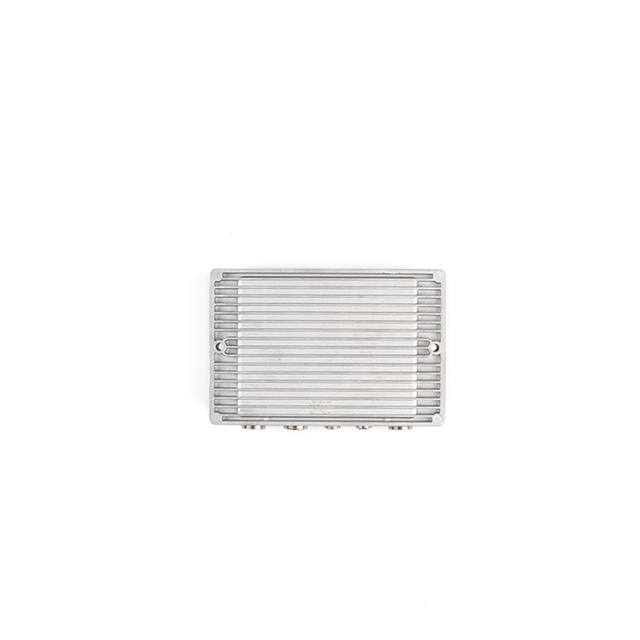

SYC-PM10-30/40

SYC electric wheelchair control system features:

• High system efficiency: 100KG load 100kg, speed 6km / h, battery 10ah, traveling about 24km

• System noise: load 100kg, silent chamber test ≤ 52dB

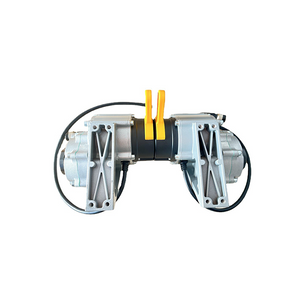

• Motor size: servo motor manufacturing process for design, small volume high power

• Motor weight: total weight 2.8kg

• Horn volume: up to 108dB

• Comfortable driving: Sine wave vector control mode, high reliability driving steering algorithm, ensuring stable, safe in any environment

• Low speed slow-speed: can be slow in extreme low speed, easy to travel in wheelchair small space area

• Electromagnetic brake closing time adjustable function: avoid frequent switch brakes, improve electromagnetic brake service life

• Electronic brake function: with electronic brake function, use with electromagnetic brakes, double security safety

• Power limit function: Discharge current limit for lithium battery discharge characteristics, extend battery life

• Scalable push rod function: expandable electric push rod 2 or 4 channel control, expandable human machine interaction app function

• Safety protection: has emergency power failure, motor phase-off, overhang, overvoltage, undervoltage, overload, overheating
