SYC-JCM10-110

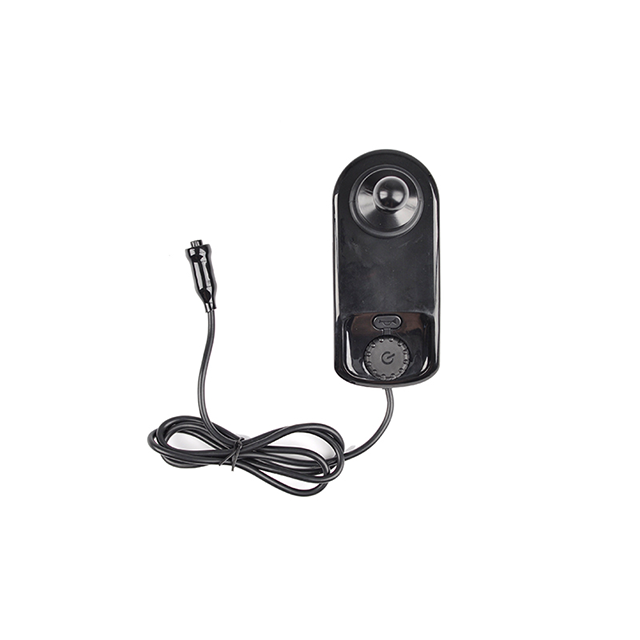

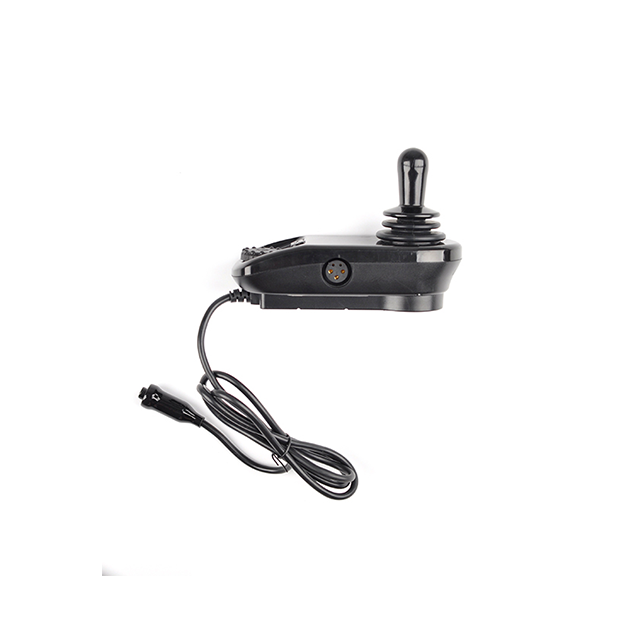

· SYC Electric Wheelchair Control System· Communication method: CAN busRocker front controller SYC-JCM10
Voltage: 24V
Maximum output current: 40A
Cooling method: natural cooling
Angle feedback: Sanhol
Main loop control method: FOC control
Communication method: CAN bus
SYC electric wheelchair control system features:
High system efficiency: 100KG load 100kg, speed 6km / h, battery 10ah, traveling about 24km
System noise: load 100kg, silent chamber test ≤ 52dB
Motor size: servo motor manufacturing process for design, small volume high power
Motor weight: total weight 2.8kg
Horn volume: up to 108dB
Comfortable driving: Sine wave vector control mode, high reliability driving steering algorithm, ensuring stable, safe in any environment
Low speed slow-speed: can be slow in extreme low speed, easy to travel in wheelchair small space area
Electromagnetic brake closing time adjustable function: avoid frequent switch brakes, improve electromagnetic brake service life
Electronic brake function: with electronic brake function, use with electromagnetic brakes, double security safety
Power limit function: Discharge current limit for lithium battery discharge characteristics, extend battery life
Scalable push rod function: expandable electric push rod 2 or 4 channel control, expandable human machine interaction app function
Safety protection: has emergency power failure, motor phase-off, overhang, overvoltage, undervoltage, overload, overheating
Rocker front controller SYC-JCM10
Voltage: 24V
Maximum output current: 40A
Cooling method: natural cooling
Angle feedback: Sanhol
Main loop control method: FOC control
Communication method: CAN bus
SYC electric wheelchair control system features:
High system efficiency: 100KG load 100kg, speed 6km / h, battery 10ah, traveling about 24km
System noise: load 100kg, silent chamber test ≤ 52dB
Motor size: servo motor manufacturing process for design, small volume high power
Motor weight: total weight 2.8kg
Horn volume: up to 108dB
Comfortable driving: Sine wave vector control mode, high reliability driving steering algorithm, ensuring stable, safe in any environment
Low speed slow-speed: can be slow in extreme low speed, easy to travel in wheelchair small space area
Electromagnetic brake closing time adjustable function: avoid frequent switch brakes, improve electromagnetic brake service life
Electronic brake function: with electronic brake function, use with electromagnetic brakes, double security safety
Power limit function: Discharge current limit for lithium battery discharge characteristics, extend battery life
Scalable push rod function: expandable electric push rod 2 or 4 channel control, expandable human machine interaction app function
Safety protection: has emergency power failure, motor phase-off, overhang, overvoltage, undervoltage, overload, overheating
