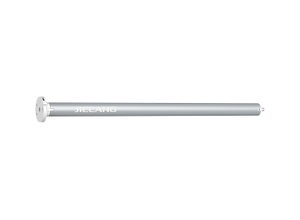

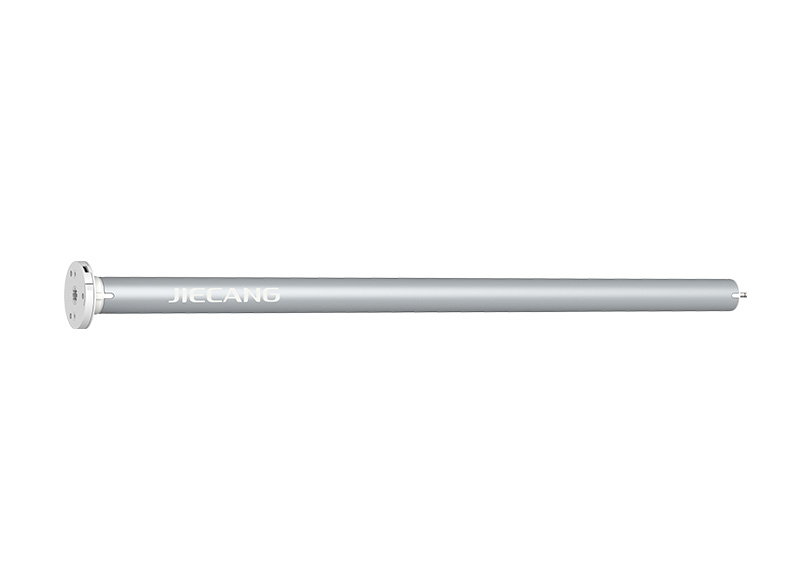

Rechargable Motors-12V

Internal Li-Ion Battery Powered

FEATURES

1. Various torque for widely applicate.

2. Internal rechargeable lithium battery.

3. Smart control with Smart Hub and Mini Bridge.

4. Compatible with leading brands of Home Automation Systems.

5. Low standby power design,would operate 4~6 month when fully charged.

6. Powered by adaptor or USB charging or solar panel.

7. Built-in RF433.92 wireless receiver,electronic limit.

8. Patented spring arm button design on motor head, good operating feeling.

9. Thinnest motor head design,minimize light transmission gap.

10. Patented silent motor design,running noise <33dB.

11. 3 speeds adjustable.

12. Stall Protection.

13. Easily set up/down limit,and favorite position.

APPLICATION

Indoor roller blinds

Shangri-La Blinds

Roman Blinds

Aluminum Venetian blinds

Honeycomb blinds

Sheer Blinds

Type	Rated Torque(N.m)	Rated Speed(rpm)	Power Supply	Rated Power(W)	Rated Current(A)	Maximum Shade Size*	Weight Capacity**	Smart Control
JCD15SLE-0330	0.3	25/30/35	8.4V/1A Adaptor&5V/2A USB Charger&Solar Panle	5	0.6	40"×40" ¦ 1.0m*1.0m	4.5 lb ¦ 2 kg	Mini Bridge/Hub
JCD15SLE-0330-B/Z	0.3	25/30/35	8.4V/1A Adaptor&5V/2A USB Charger&Solar Panle	5	0.6	40"×40" ¦ 1.0m*1.0m	4.5 lb ¦ 2 kg	Plug-in Bluetooth or Zigbee

*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.

Type	Rated Torque(N.m)	Rated Speed(rpm)	Power Supply	Rated Power(W)	Rated Current(A)	Maximum Shade Size*	Weight Capacity**	Smart Control
JCD25SLE-1130	1.1	20/25/30	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	9.6/12	0.8/1.0	84"×84" ¦ 2.1m*2.1m	9 lb ¦ 4 kg	Mini Bridge/Hub
JCD25SLE-1520	1.5	20/25/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	12	1.1	84"×122" ¦ 2.1m*3.1m	15 lb ¦ 7 kg	Mini Bridge/Hub
JCD25SLE-2020	2.0	20/24/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	18	1.6	84"×160" ¦ 2.1m*4.1m	20 lb ¦ 9 kg	Mini Bridge/Hub
JCD25SLE-1130-B/Z	1.1	20/25/30	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	12	1.0	84"×84" ¦ 2.1m*2.1m	9 lb ¦ 4 kg	Plug-in Bluetooth or Zigbee
JCD25SLE-1520-B/Z	1.5	20/25/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	12	1.1	84"×122" ¦ 2.1m*3.1m	15 lb ¦ 7 kg	Plug-in Bluetooth or Zigbee
JCD25SLE-2020-B/Z	2.0	20/24/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	18	1.6	84"×160" ¦ 2.1m*4.1m	20 lb ¦ 9 kg	Plug-in Bluetooth or Zigbee

*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.

Type	Rated Torque(N.m)	Rated Speed(rpm)	Power Supply	Rated Power(W)	Rated Current(A)	Maximum Shade Size*	Weight Capacity**	Smart Control
JCD28QLE-2020	2.0	20/24/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	18	1.6	84"×160" ¦ 2.1m*4.1m	20 lb ¦ 9 kg	Mini Bridge/Hub
JCD30QLE-2020	2.0	20/24/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	18	1.6	84"×160" ¦ 2.1m*4.1m	20 lb ¦ 9 kg	Mini Bridge/Hub
JCD28QLE-2020-B/Z	2.0	20/24/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	18	1.6	84"×160" ¦ 2.1m*4.1m	20 lb ¦ 9 kg	Plug-in Bluetooth or Zigbee
JCD30QLE-2020-B/Z	2.0	20/24/28	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	18	1.6	84"×160" ¦ 2.1m*4.1m	20 lb ¦ 9 kg	Plug-in Bluetooth or Zigbee

*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.

Type	Rated Torque(N.m)	Rated Speed(rpm)	Power Supply	Rated Power(W)	Rated Current(A)	Maximum Shade Size*	Weight Capacity**	Smart Control
JCD35QLE-6017	6.0	15/17/20	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	30	3.6	84"×160" ¦ 2.1m*4.1m	44 lb ¦ 20 kg	Mini Bridge/Hub
JCD35QLE-6017-B/Z	6.0	15/17/20	12V/1A Adaptor&5V/2A USB Charger&Solar Panle	30	3.6	84"×160" ¦ 2.1m*4.1m	44 lb ¦ 20 kg	Plug-in Bluetooth or Zigbee

*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.
