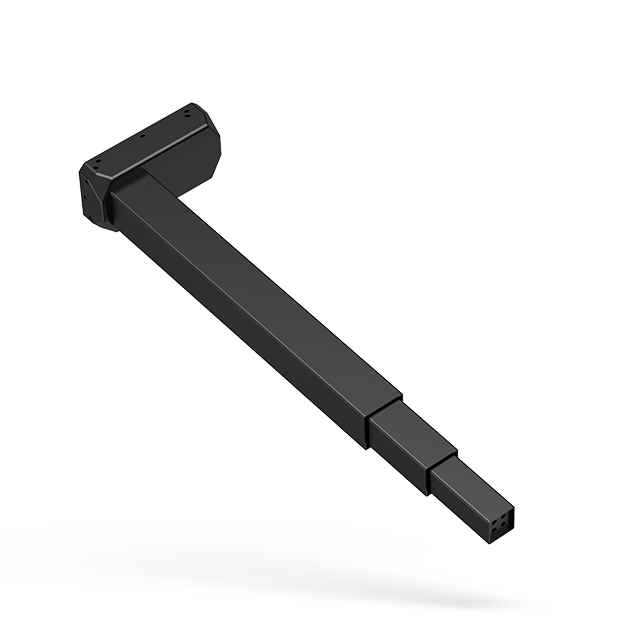

JS36DS4-3-R

· 3 Stage
· Square 60*60 mm
· L-shaped
Estado de Disponibilidad:


  • JS36DS4-3-R is a square 3 stage no-hole column with smooth and concise design, The 3 stage tube guarantee a short installation dimension combined with a long stroke length, making JS36DS4-3-R to be the optimum choice in various desk height.

  • JS36DS4-3-R is an upside down column, where the inner tube is mounted on the foot construction. And the Triangular support block design between motor housing and outer tube enhance stability. It is intended for desks without beam, this feature ensures an optimum freedom of design.

  • JS36DS4-3-R is available in several standard colours and can be used in kinds of frame & foot construction.

  • JS36DS4-3-R is compatible with all the standard Jiecang control boxes, and ensures a very low and pleasant noise level, and steady movement.

  • The function of anti-collision minimize the risk of damages when desk collision with an obstacle.

  • Furthermore, the system has a very low standby power consumption less than 0.1W.

TypeRated load (N)

Self locking (N)

Typical current at rated load (A)

Typical Max speed

0 load ~ Rated load

(mm/s)

Duty cycle

Stroke

length

(mm)

Built-in

length

(mm)

JS36DS4-3-R800120053510%650560
