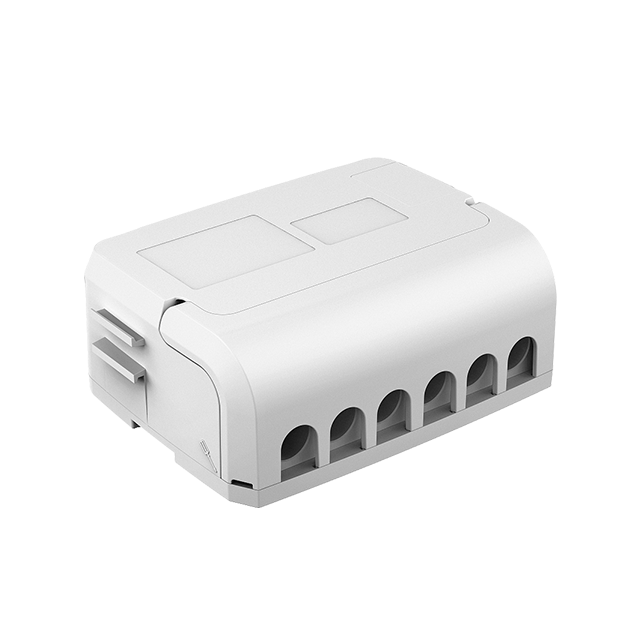

JCB35T1

Power supply：Input: 100-240 VAC, 50/60 Hz, Output 72W in the rated state, 180W in the working mode

Power indicator: Yes

Actuator interface：Max. 4channels, 4 pin DIN plug (JCB35T1)/5 pin DIN plug（JCB35T1-M）

Handset interface：1 channel, 9 pin DIN plug

Battery interface：1 channel, 6 pin DIN plug(When there is no action output 1mA)

Standby power：Max. 1W

Color：Gray

Control Method：H-bridge(no relay noise), the life-time exceeds 20,000 cycles.

Duty Cycle：2/18min @ 25°C; on/off continuous use(180W at 25°C for 120 seconds）

Net Weight：0.6kg

Compatibility：Support standard actuator and column (inner limit switch)

Battery Management: turning off at low voltage; charging and discharging management

IP grade：Max. IPX6

Operation：Synchronous drive (feedback optional)

Max. Current：Total 10A for all channels

Power supply management：Voltage management ensures maximum working power and limit output power up to 200W

Protection：Switching power supply thermal protection/Overheat protection

Installation：Fixed to various type of actuators by special mounting connector; frame (fixed by screws or slider block)

Cable cover：All channels are available
