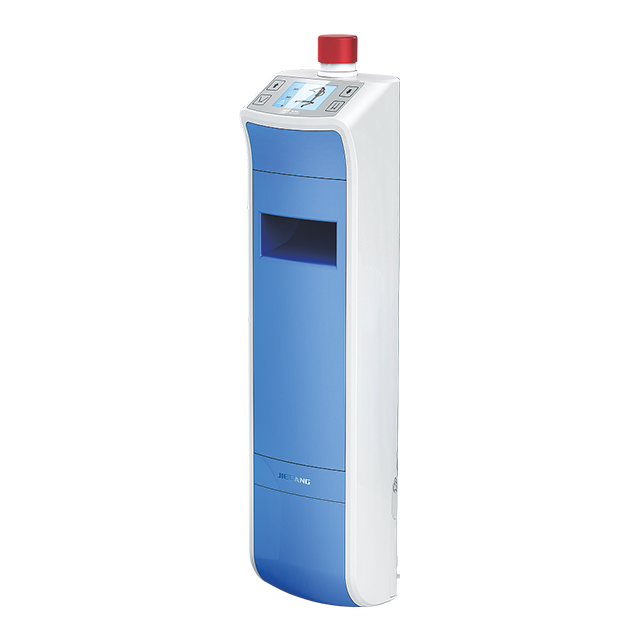

JCB35K3

· Outputs for actuator: 1-3
· IP grade: Max. IPX6
· Type of battery: Li-ion
Estado de Disponibilidad:


  • Can connect to most 3 actuators and 1 controller

  • Output voltage:24VDC

  • Battery capacity: 2.2AH or 4.4AH

  • Color: Blue and white

  • Overload protection: Single-extra overcurrent protection

  • Plug of actuators: DIN 6 ET bend plug

  • Plug of controllers: DIN 10 RJ bend plug

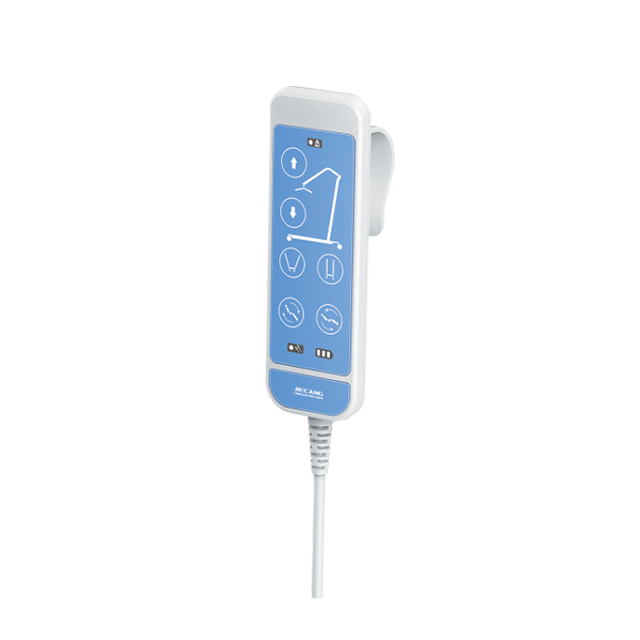

  • Power indication: Both on handset and display

  • Low power alarm: icon on display and buzzer warning

  • Emergency stop switch: power dump in emergency situations

  • With 2.0-inch TFT color display

  • IP grade: Max. IPX6
