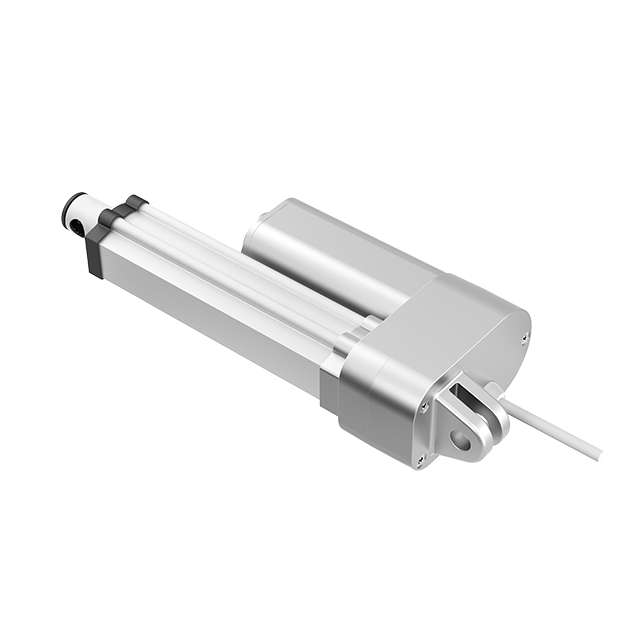

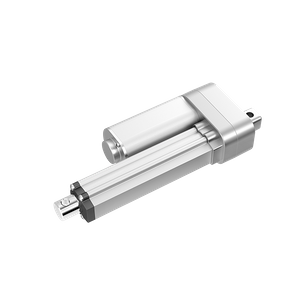

JC35W2-2
· Max. load: 3000N· IP grade: Max. IPX6Load in push: 3000N; 2000N; 1000N
Load in pull: 3000N; 2000N; 1000N
Color: silver gray
IP grade: Max. IPX6
Stroke length:
3000N：50-250mm；
2000N：50-400mm；
1000N：50-400mm；
Installation dimensions:
L=175（20≤S＜50）L=S+125（50≤S≤400）
Noise level: ≤50dB(noise of environment≤40dB)
Dual hall sensor: optional
Built-in electrical limit switch.
Weight: About 1.7kg (different stroke length and installation dimensions with different weight)
Static bending moment: lateral load is not allowed
Load in push: 3000N; 2000N; 1000N
Load in pull: 3000N; 2000N; 1000N
Color: silver gray
IP grade: Max. IPX6
Stroke length:
3000N：50-250mm；
2000N：50-400mm；
1000N：50-400mm；
Installation dimensions:
L=175（20≤S＜50）L=S+125（50≤S≤400）
Noise level: ≤50dB(noise of environment≤40dB)
Dual hall sensor: optional
Built-in electrical limit switch.
Weight: About 1.7kg (different stroke length and installation dimensions with different weight)
Static bending moment: lateral load is not allowed
