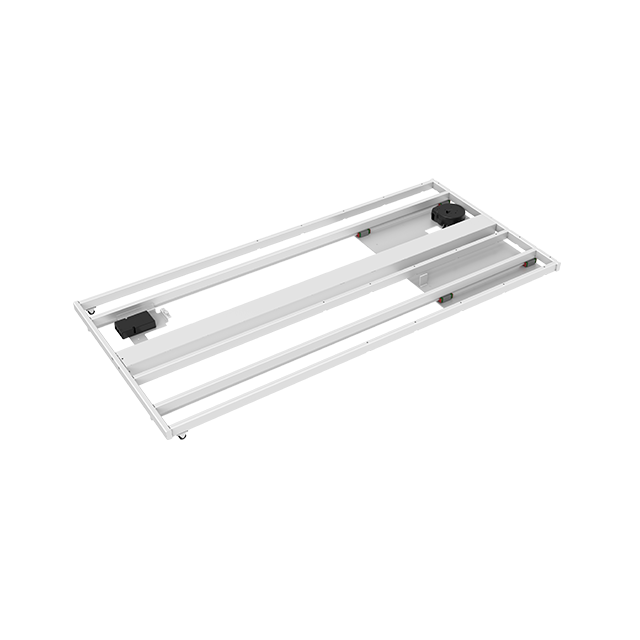

JC35TLQ
· Stroke:500/1200mm
· Load:1000NLinear guide rail limit, the column pushes
The push-pull with a stroke of 550mm can be matched with a lifting faucet (1200mm is temporarily not supported)
Maximum load: 1000N
With JIECANG NS2 series controller, no-load & load keep stable speed: 75mm/s
Noise level: ≤53dB
Fixing method of push-pull: M8 bolts and ST5 self-tapping screws are pre-tightened
Standard stroke: 550mm; 1200mm
Motor: Jiecang self-made high-power motor
Dual Hall feedback
Surface: plastic spray, standard color: white
