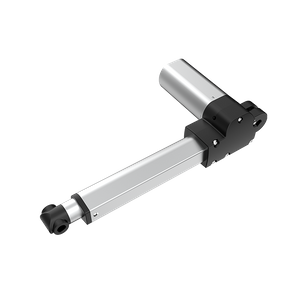

JC35L9
· Max. load：6000N· IP grade: Max. lPX6Load in push：6000N,4000N
Color: Gray /Black
IP grade: Max. IPX6
Input voltage: 24VDC
Stroke length:
6000N：50-250mm (in steps of 4mm)
4000N：50-500mm (in steps of 4mm)
Installation dimensions:
L=225（S≤50）
L=S+175（50＜S≤200）
L=S+185（200＜S≤300）
L=S+195（300＜S≤400）
L=S+205（400＜S≤500）
Noise level: ≤48dB, ( environmental noise≤40dB)according to DS/EN ISO3743-1
Safety nut: optional
Hall sensor : optional
Only push no push : optional
Built-in electrical limit switch.
Weight: About 2kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
Load in push：6000N,4000N
Color: Gray /Black
IP grade: Max. IPX6
Input voltage: 24VDC
Stroke length:
6000N：50-250mm (in steps of 4mm)
4000N：50-500mm (in steps of 4mm)
Installation dimensions:
L=225（S≤50）
L=S+175（50＜S≤200）
L=S+185（200＜S≤300）
L=S+195（300＜S≤400）
L=S+205（400＜S≤500）
Noise level: ≤48dB, ( environmental noise≤40dB)according to DS/EN ISO3743-1
Safety nut: optional
Hall sensor : optional
Only push no push : optional
Built-in electrical limit switch.
Weight: About 2kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
