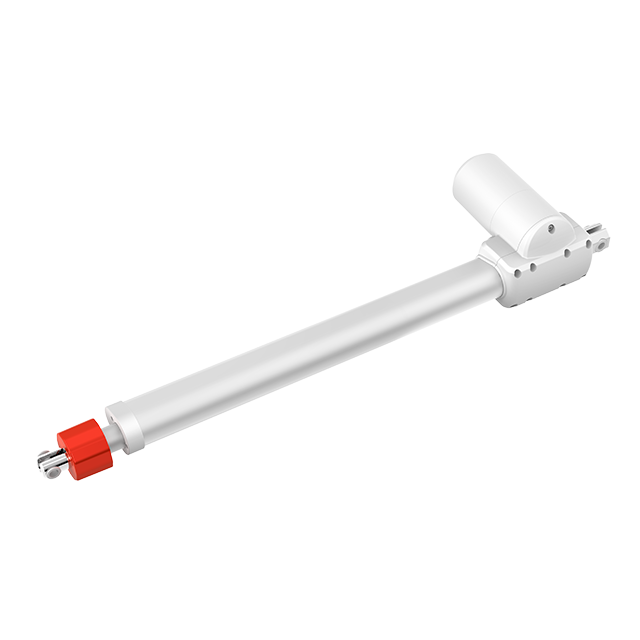

JC35L28
· Max. load: 10000N· IP grade: Max. IPX6· Manual operation: optionalLoad in push: 10000N, 8000N
Color: gray
IP grade: Max. IPX6
Stroke length:
Patient lift version: 50-400mm(in steps of 4mm)
Standard version: 50-250mm (in steps of 4mm)
Installation dimensions:
Patient lift version：
L=S+260（50≤S≤300，with manual）
L=S+290（300<S≤400，with manual）
Standard version:
L=S+185（50≤S≤250，standard）
Noise level: ≤48dB, ( environmental noise≤40dB)
Safety nut: standard
Hall sensor : optional
Only push no pull : optional
manual operation:optional
Built-in electrical limit switch.
Weight: About 3kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
Flame retardant grade: UL94 HB grade
Load in push: 10000N, 8000N
Color: gray
IP grade: Max. IPX6
Stroke length:
Patient lift version: 50-400mm(in steps of 4mm)
Standard version: 50-250mm (in steps of 4mm)
Installation dimensions:
Patient lift version：
L=S+260（50≤S≤300，with manual）
L=S+290（300<S≤400，with manual）
Standard version:
L=S+185（50≤S≤250，standard）
Noise level: ≤48dB, ( environmental noise≤40dB)
Safety nut: standard
Hall sensor : optional
Only push no pull : optional
manual operation:optional
Built-in electrical limit switch.
Weight: About 3kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
Flame retardant grade: UL94 HB grade
