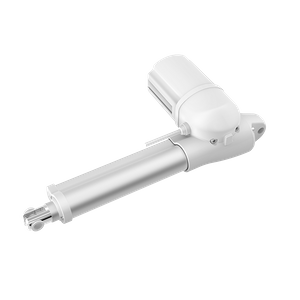

JC35L22

· Max. load:6000N
· IP grade: Max. IP66
Estado de Disponibilidad:

  • Load in push: 6000N、4000N、2500N

  • Load in pull: 4000N、2000N

  • Color: gray

  • IP grade: Max. IP66,(Hand crank: IP20)

  • Stroke length:

    Standard:

    6000N:25-200mm(in steps of 4mm)

    4000N:25-200mm(in steps of 4mm)

    2500N:200-415mm(in steps of 4mm)

    Hand crank:

    6000N:50-200mm(in steps of 4mm)

    4000N:50-200mm(in steps of 4mm)

  • Installation dimensions

    Standard:

    6000N/4000N:

    L=225 (25≤S<50)

    L=S+175 (50≤S<200);

    2500N(Long stroke, only used in heli-helical applications):

    L=225 (25≤S<50)

    L=S+175 (50≤S<200);

    L=S+185(200≤S≤415)

    Hand crank:
    6000N/4000N:
    L=S+175 (50≤S<200)

  • Noise level: ≤48dB (environmental noise≤40dB)

  • Only push no pull option: optional

  • Hand crank: optional

  • Built-in electrical limit switch

  • Static bending moment: lateral load is not allowed
