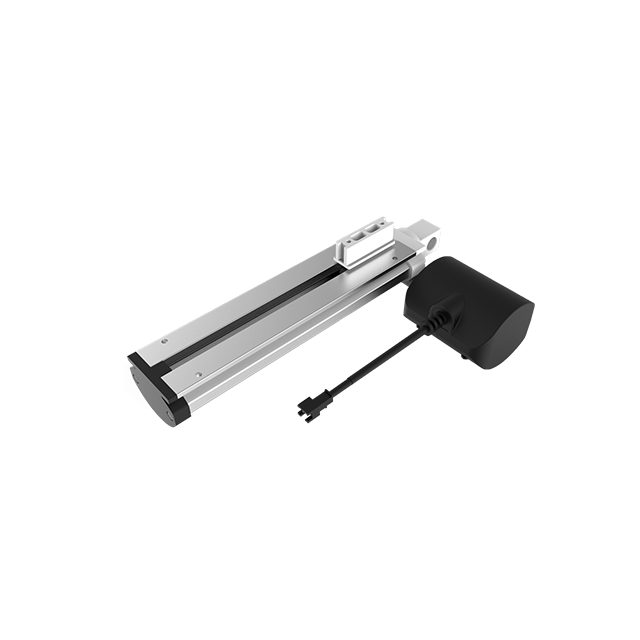

JC35L19 Series
· Max. load：100N· lP grade: lP20
· MiniMax Thrust: 100 N
Max speed at 0 Load: 14 mm/s
Max speed at full Load: 9 mm/s
Max current at full Load <0.7A
Static Load Push/Pull >100 N
lnput Voltage: 12VDC
Input Power: 8 W
Stroke Length: 20 ~ 250 mm
Stall current <1.6 A
Colour: Black
Mounting Method: Outertube 4-M4 or optional top/end clevis
Limit Method: Stall current or built-in switch
Limit Switch:
A/B:None,C:Built-inlP grade: lP20
Max Thrust: 100 N
Max speed at 0 Load: 14 mm/s
Max speed at full Load: 9 mm/s
Max current at full Load <0.7A
Static Load Push/Pull >100 N
lnput Voltage: 12VDC
Input Power: 8 W
Stroke Length: 20 ~ 250 mm
Stall current <1.6 A
Colour: Black
Mounting Method: Outertube 4-M4 or optional top/end clevis
Limit Method: Stall current or built-in switch
Limit Switch:
A/B:None,C:Built-inlP grade: lP20
