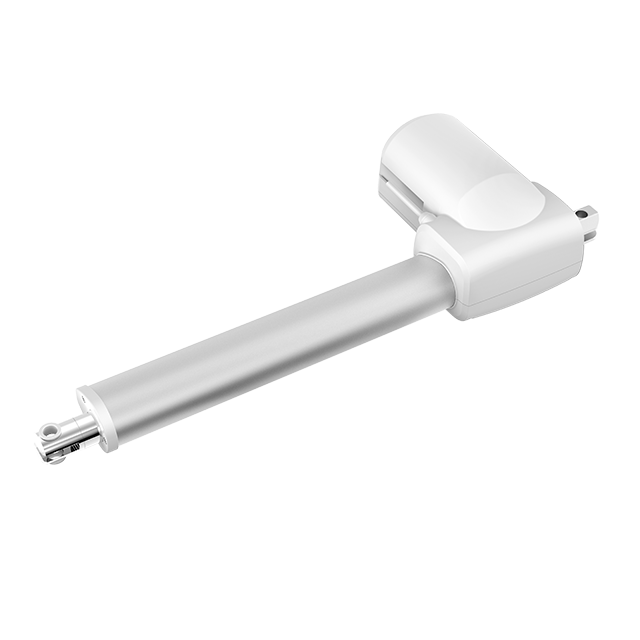

JC35L18

· Max. load:8000N
· IP grade: Max. IPX6W
Estado de Disponibilidad:

  • Load in push:8000N,6000N

  • Color: Gray

  • IP grade: Max. IPX6W

  • Stroke length:
    Standard:

    8000N:50-500mm

    6000N:50-500mm

    Fast version:

    6000N:50-300mm

    5000N:50-300mm

    4000N:50-300mm

    3000N:50-300mm

  • Installation dimensions:

    Standard:

    L=225(S≤50)

    L=S+175(50<S≤400)

    L=S+195(400<S≤500)
    Fast version:

    L=225(S≤50)

    L=S+175(50<S≤200)

    L=S+185(200<S≤300)

  • Noise level: ≤50dB, ( environmental noise≤40dB)

  • Safety nut: optional

  • Hall sensor : optional

  • Only push no pull option : optional

  • Built-in electrical limit switch.

  • Weight: About 3kg (different stroke length and installation dimensions with different weight )

  • Static bending moment: lateral load are not allowed.
