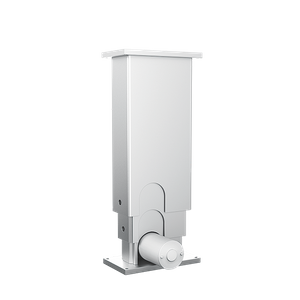

JC35EN3A
· Max. load: 6000N· IP grade: IPX4Motor:24 VDC
Available Load: 2000N/4000N/6000N
Stroke Length: 100-400mm(+/-3mm)
Built-in Dimension: 350mm
Static Bending Moment: 1000/1500/2000Nm
Dynamic Bending Moment: 750/1250/1750Nm
Low Noise Level: ≤48dB(ambient noise≤40dB)
Surface:Anodized aluminium
IP grade: IPX4
Built-in Electronic Limit Switches
Motor:24 VDC
Available Load: 2000N/4000N/6000N
Stroke Length: 100-400mm(+/-3mm)
Built-in Dimension: 350mm
Static Bending Moment: 1000/1500/2000Nm
Dynamic Bending Moment: 750/1250/1750Nm
Low Noise Level: ≤48dB(ambient noise≤40dB)
Surface:Anodized aluminium
IP grade: IPX4
Built-in Electronic Limit Switches
