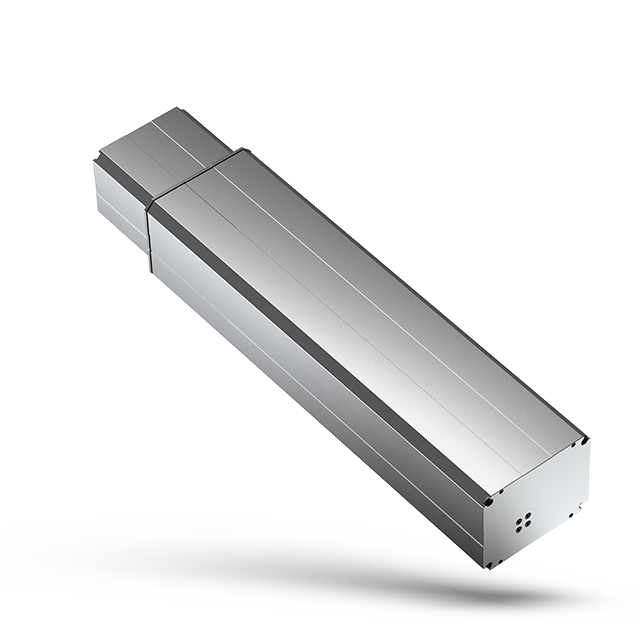

JC35EN-2K

· Large bending moment
· High load capacity
· Fast speed
Estado de Disponibilidad:


  • JC35EN-2K is a EN series of lifting columns with two-segment. It has the advantage of large bending moment and fast speed, high load and stability.

  • It's mainly developed for the application of single leg lifting desks; The column is characterized by large bending moment and fast speed. At full load of 1500N, the lifting speed, compatible with JCB35N2 control box, can reach 30mm/s. The static bending moment could reach 1000NM and dynamic 500NM.

TypeRated load (N)

Self locking (N)

Typical current at rated load (A)

Typical Max speed

0 load ~ Rated load

(mm/s)

Duty cycle

Stroke

length

(mm)

Built-in

length

(mm)

JC35EN-2K150015007.53010%400650
