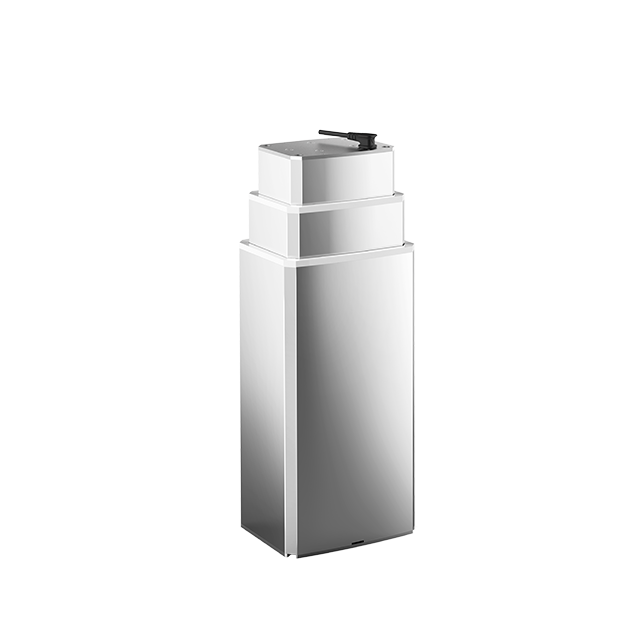

JC35EA3C

· Max. load:2000N
· IP grade : Max. IPX6

Estado de Disponibilidad:

  • Output voltage:29VDC

  • Max. load:2000N

  • Retracted length:350±3mm

  • Stroke length:400±3mm

  • The current without load:≤2.5A

  • The max load current:≤5.0A

  • The speed without load:≤16mm/s

  • The speed with full load:≤14mm/s

  • Static bending moment:500NM

  • Dynamic bending moment:250NM

  • The color of shell: Aluminum color

  • IP grade: Max. IPX6


JC35EA3C规格书封面

Datasheet

Preview/Download
