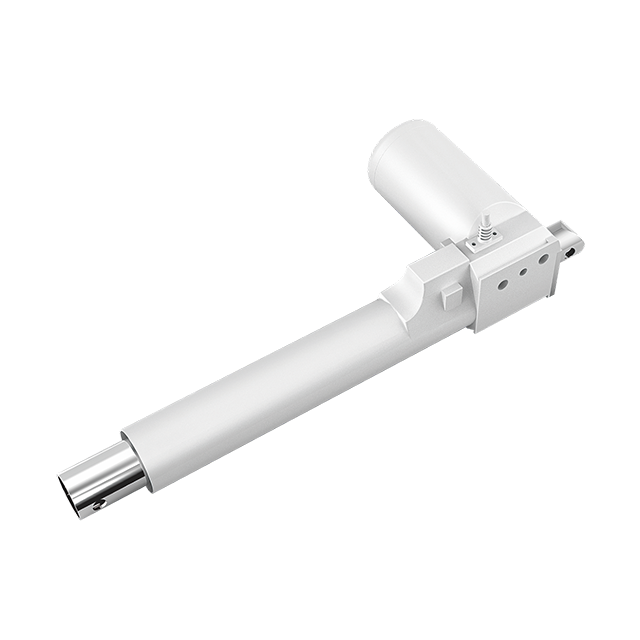

JC35DS
· Max. load: 6000N· IP grade: IP43· Hand crank operation when power offLoad in push: 6000N
Load in pull: /
Color: Grey/ Black
IP grade: IP43
Stroke length: 100、150、200、250
Installation dimensions: L=425 (S=100)、L=425 (S=150)、L=475 (S=200)、L=525 (S=250)
Noise level≤52dB(environmental noise≤40dB)
Built-in electrical limit switch
Weight: About 2.7kg (different stroke length and installation dimensions with different weight)
Static bending moment: lateral load is not allowed
Load in push: 6000N
Load in pull: /
Color: Grey/ Black
IP grade: IP43
Stroke length: 100、150、200、250
Installation dimensions: L=425 (S=100)、L=425 (S=150)、L=475 (S=200)、L=525 (S=250)
Noise level≤52dB(environmental noise≤40dB)
Built-in electrical limit switch
Weight: About 2.7kg (different stroke length and installation dimensions with different weight)
Static bending moment: lateral load is not allowed
